LH Side

Remove the battery. Refer to BATTERY .
Disconnect the connector from ignition coil.
Remove the ignition coil.
NOTE: Turn #4 ignition coil by 180 degrees to remove it.

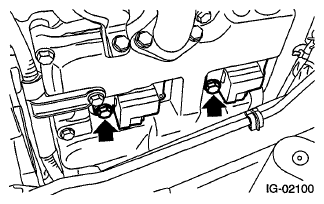

Fig 1: Locating Ignition Coil Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the spark plug with a spark plug socket.
