Engine Control Module (ECM): Removal

Disconnect the ground cable from battery.
Remove the glove box lid assembly. Refer to GLOVE BOX .
Disconnect the connectors from ECM.

Fig 1: Locating Glove Box Lid Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the ECM from vehicle.

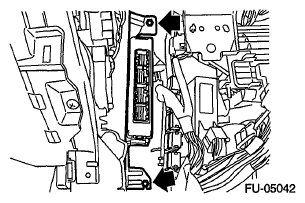

Fig 2: Locating ECM Screws
Courtesy of SUBARU OF AMERICA, INC.
