Components With Torque Specifications: Sensor

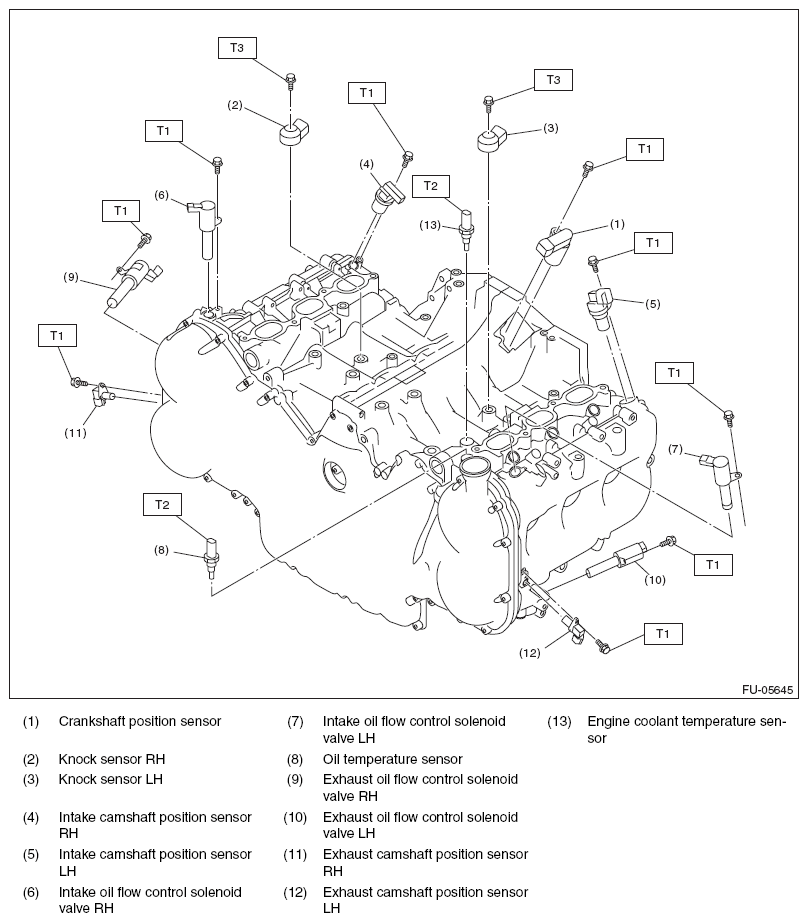

Fig 1: Sensors Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 22 (2.2, 16.2)

T3: 25 (2.5, 18.4)
