Network Architecture

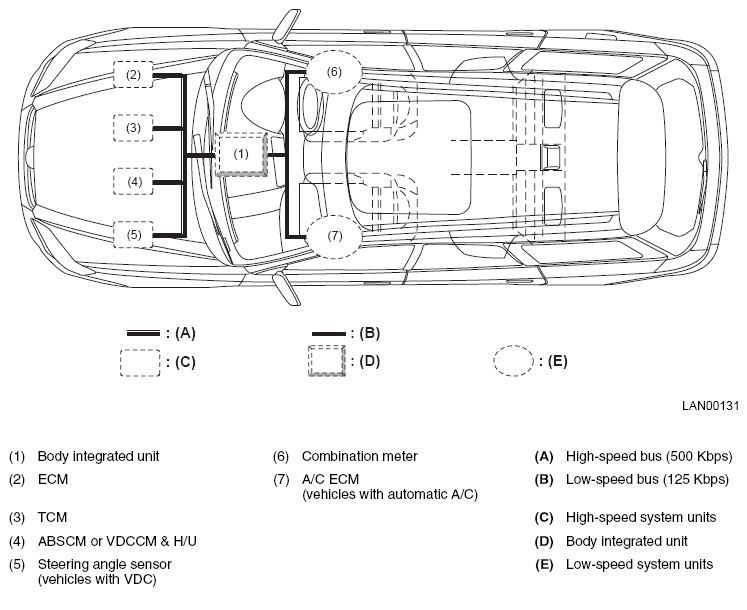

Fig 1: LAN Configuration Diagram

G08260582

Courtesy of SUBARU OF AMERICA, INC.

NOTE:

Bit rate 500 Kbps: The bit rate of 500 Kbps means that 500, 000 bits of data are transmitted per second.
Bit rate 125 Kbps: The bit rate of 125 Kbps means that 125, 000 bits of data are transmitted per second.
