Audio System: General: Speakers

• On models with six speakers, a full-range speaker is installed to each door and a tweeter is installed to each front door.
• On models with seven speakers, a full-range speaker is installed to each door and a tweeter and sub woofer are installed to each front door. The sub woofer is mounted on the rear right quarter trim (wagons).

Models with the 6 speaker system

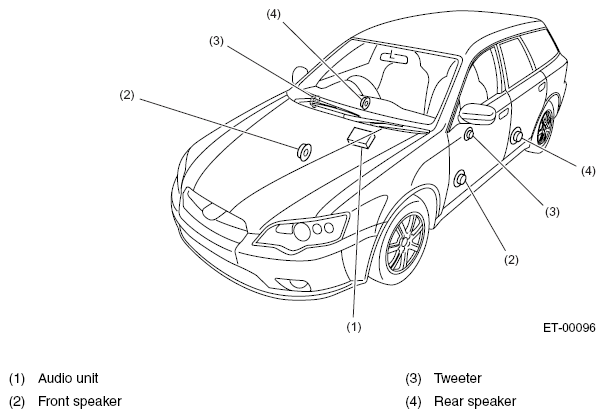

Fig 1: Identifying Audio Unit, Tweeter, Front And Rear Speaker

Courtesy of SUBARU OF AMERICA, INC.

Models with the seven speaker system

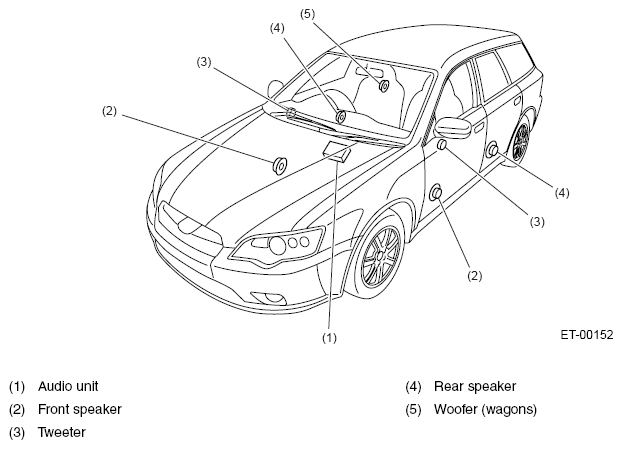

Fig 2: Identifying Audio Unit, Woofer (Wagons), Tweeter, Front And Rear Speaker

Courtesy of SUBARU OF AMERICA, INC.
