Control Module I/O Signal: Wiring Diagram

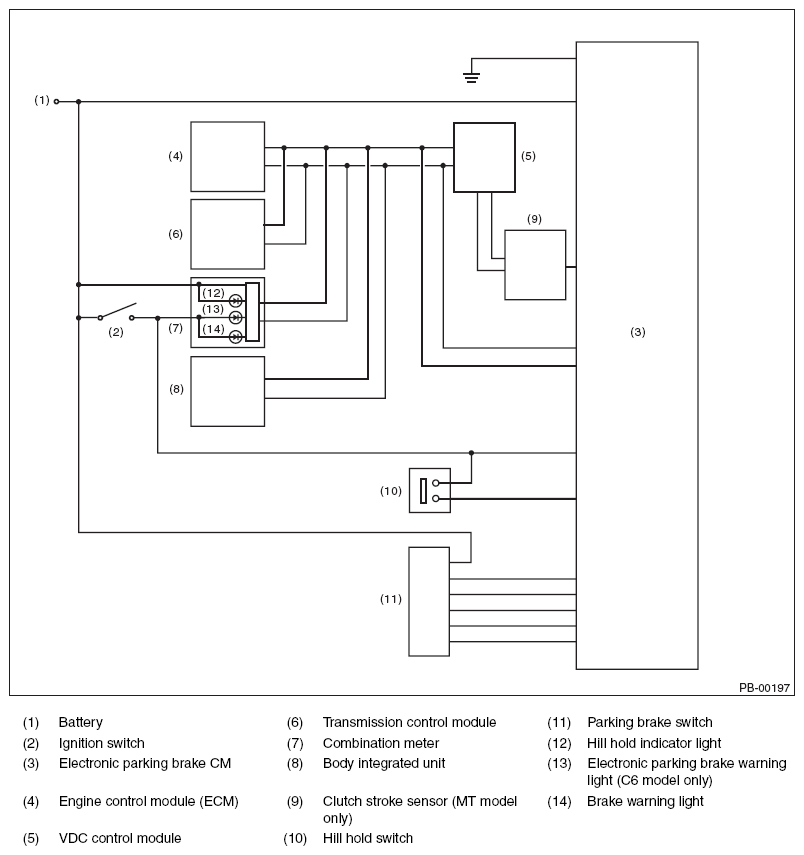

Fig 1: Parking Brake Control Module I/O Signal Wiring Diagram
G07914248Courtesy of SUBARU OF AMERICA, INC.
