Engine Oil Cooler: Removal
CAUTION:
If engine oil is spilt onto the exhaust pipe, wipe it off with cloth to avoid emission of smoke or causing a fire.
NOTE:
Turbo model is equipped with engine oil cooler.
- Lift up the vehicle.
- Remove the under cover. Refer to FRONT UNDER COVER .
- Drain engine coolant. Refer to ENGINE COOLANT .
- Remove the front exhaust pipe. Refer to FRONT EXHAUST PIPE .
- Remove the engine oil filter. Refer to , REMOVAL , Engine Oil Filter.

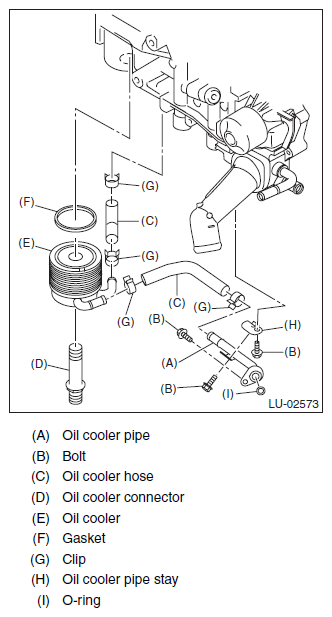

- Remove the bolt (B) holding the oil cooler pipe (A) to the oil pump.
- Remove the oil cooler pipe (A) and oil cooler hose (C).
- Remove the oil cooler connector (D) and oil cooler (E).
