Scavenge Pump: Installation

Install in the reverse order of removal.

CAUTION: Do not start applying liquid gasket from (A) as shown in the following figure.

NOTE:

Liquid gasket:

THREE BOND 1217G (Part No. K0877Y0100) or equivalent

Fig 1: Identifying Liquid Gasket Application Side On Oil Pan

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

T1: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

T2: 29 N.m (3.0 kgf-m, 21.4 ft-lb)

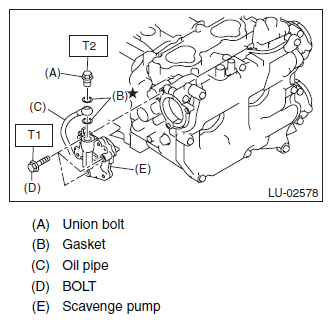

Fig 2: Identifying Scavenge Pump, Union Bolt, Gasket And Oil Pipe

Courtesy of SUBARU OF AMERICA, INC.
