Continuously Variable Transmission Diagnostics: Electrical Component Location: Location: Solenoid

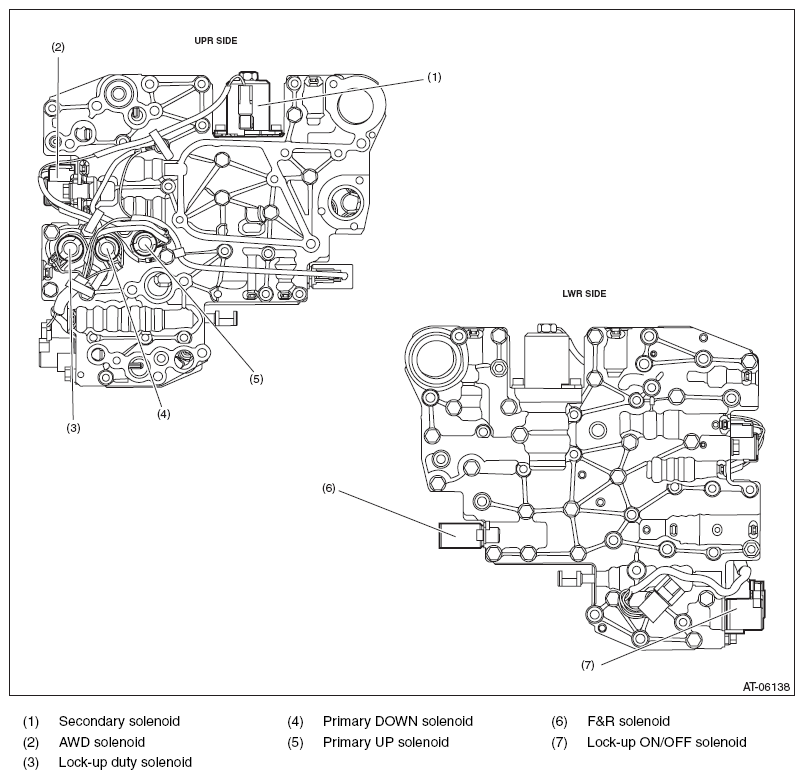

Fig 1: Identifying Solenoid Components Location
G07913749Courtesy of SUBARU OF AMERICA, INC.
