CVTF Cooler Pipe and Hose: Installation

CAUTION: When installing the CVTF cooler pipe assembly on vehicle side, be careful not to bend the A/C pipe.

Temporarily attach the CVTF cooler pipe assembly to vehicle.
Install the CVTF cooler pipe assembly to vehicle.
Tightening torque:

7.5 N.m (0.76 kgf-m, 5.5 ft-lb)

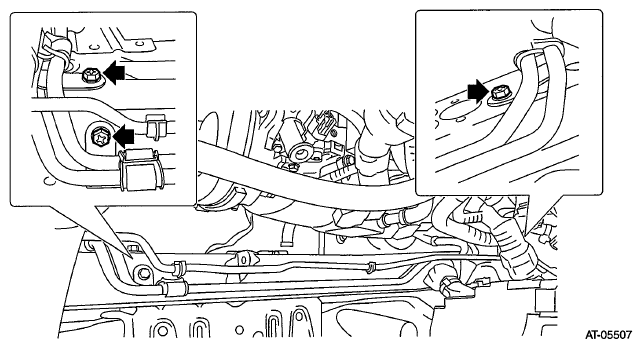

Fig 1: Locating CVTF Cooler Pipe Assembly Mounting Bolt
Courtesy of SUBARU OF AMERICA, INC.
Install the A/C pipe to clip.
Install the battery cable bracket, and install the battery cable clip to the bracket.
Tightening torque:

7.5 N.m (0.76 kgf-m, 5.5 ft-lb)

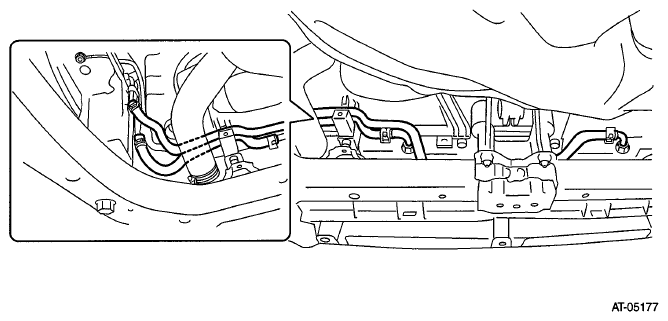

Fig 2: Locating Battery Cable Bracket And Battery Cable Clip
Courtesy of SUBARU OF AMERICA, INC.
Install the engine coolant reservoir tank. Refer to RESERVOIR TANK CO(H4SO)-25, INSTALLATION, Reservoir Tank.
Lift up the vehicle.
Install the CVTF inlet hose and CVTF outlet hose.
NOTE: Use the new CVTF inlet hose and CVTF outlet hose.

Fig 3: Identifying CVTF Inlet Hose And CVTF Outlet Hose
Courtesy of SUBARU OF AMERICA, INC.
Install the inlet hose and outlet hose on radiator side.
NOTE: Use the new inlet hose and outlet hose.

Fig 4: Identifying Inlet Hose And Outlet Hose On Radiator Side
Courtesy of SUBARU OF AMERICA, INC.
Install the under cover.
Lower the vehicle.
Install the battery.
Adjust the CVTF level and check there is no leakage. Refer to , ADJUSTMENT , CVTF.
