Security Control Module: Removal

  1. Remove the heater and cooling unit. Refer to REMOVAL .
  2. Remove the security control module.
    1. Disconnect the connector.
    2. Remove the nuts, and remove the security control module.

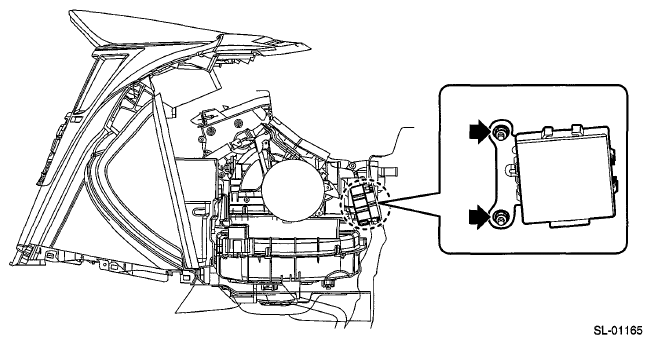

      Fig 1: Locating Security Control Module Nuts
      G06653938Courtesy of SUBARU OF AMERICA, INC.
