Outer Mirror Assembly: Removal

  1. Remove the front door trim. Refer to DOOR TRIM .
  2. Remove the outer mirror assembly.
    1. Disconnect the connector.
    2. Remove the bolts, and then remove the outer mirror assembly.

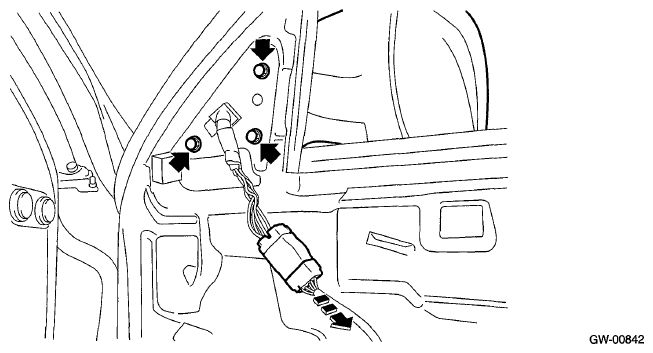

      Fig 1: Removing Outer Mirror Assembly
      G06653710Courtesy of SUBARU OF AMERICA, INC.
