Relay and Fuse: Location

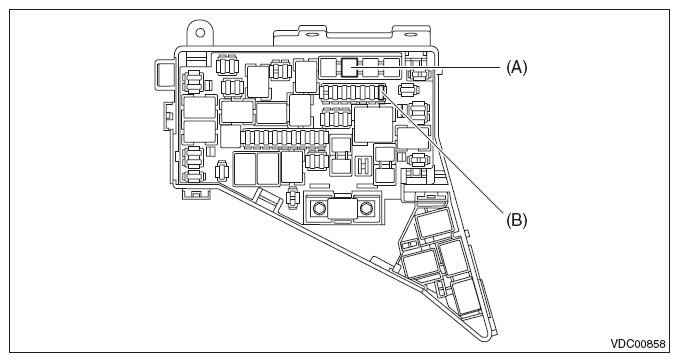

Fig 1: Relay And Fuse Location

Courtesy of SUBARU OF AMERICA, INC.

Main fuse box	Fuse 40 A (VDC CM & H/U)	(A)
Main fuse box	Fuse 30 A (VDC CM & H/U)	(B)

NOTE: For other related fuses, refer to the wiring diagram. Refer to SYSTEM WIRING DIAGRAMS or SYSTEM WIRING DIAGRAMS .
