Rear Drive Shaft Assembly

Model	Type of drive shaft	Axle diameter ø mm (in)	Axle length mm (in)
Sedan CVT	BJ + DOJ	22 (0.87)	400.6 (15.77)
Other than above	EBJ + DOJ	22 (0.87)	394.3 (15.52)

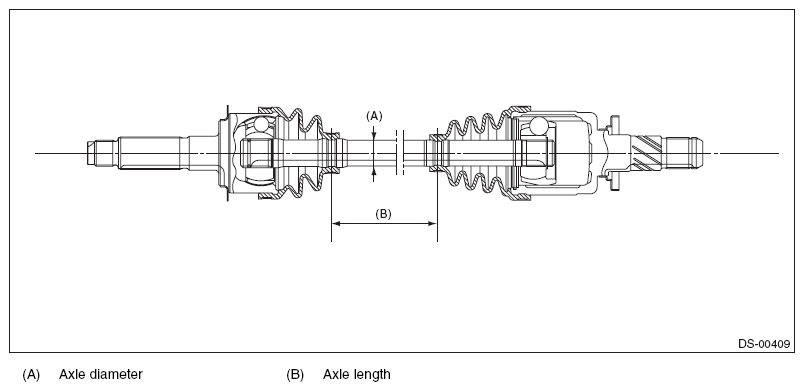

Fig 1: Identifying Rear Drive Shaft Assembly Length

Courtesy of SUBARU OF AMERICA, INC.
