Electro-Luminescent Meter

To increase desirability and visibility of the meter, an electro-luminescent meter is used on some models.

• Red LEDs are used for meter rings and needles illumination.
• The brightness of the meter display area can be properly adjusted to meet various conditions.
• An indicator that illuminates when the lighting switch is turned to the next position from OFF is provided.

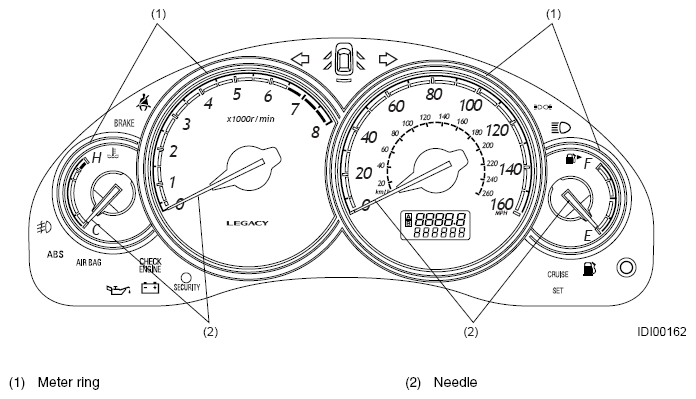

Fig 1: Identifying Combination Meter Ring And Needle

Courtesy of SUBARU OF AMERICA, INC.
