Engine Cooling System (H4SO): Radiator: Installation

Install the radiator lower cushion to the vehicle body.

Fig 1: Identifying Radiator Lower Cushion (View 2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Install the radiator to the vehicle.
NOTE: Insert the pin on the lower side of radiator into the radiator lower cushion.
Install the radiator upper brackets.
Tightening torque:

12 N.m (1.2 kgf-m, 8.9 ft-lb)

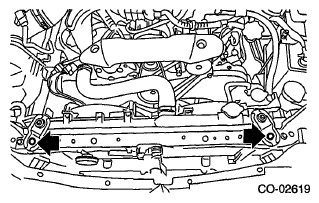

Fig 2: Locating Radiator Upper Brackets
Courtesy of SUBARU OF AMERICA, INC.
Attach the grille bracket.

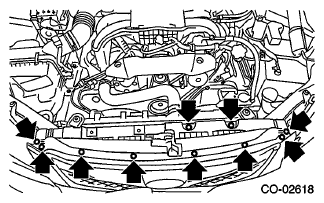

Fig 3: Locating Grille Bracket Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Connect the radiator inlet hose.

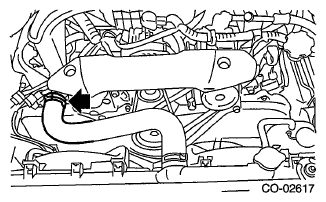

Fig 4: Locating Radiator Inlet Hose
Courtesy of SUBARU OF AMERICA, INC.
Connect the connectors of radiator main fan motor connector (A) and sub fan motor connector (B).

Fig 5: Identifying Radiator Main Fan Motor Connector
Courtesy of SUBARU OF AMERICA, INC.

Fig 6: Identifying Sub Fan Motor Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the air intake duct. Refer to AIR INTAKE DUCT .
Install the reservoir tank. Refer to , INSTALLATION .
Lift up the vehicle.
Connect the CVTF cooler hoses. (CVT model)
NOTE: Use a new CVTF hose.

Fig 7: Locating CVTF Cooler Hoses
Courtesy of SUBARU OF AMERICA, INC.
Connect the radiator outlet hose.

Fig 8: Locating Radiator Outlet Hose
Courtesy of SUBARU OF AMERICA, INC.
Install the under cover. Refer to FRONT UNDER COVER .
Lower the vehicle.
Connect the ground cable to battery.

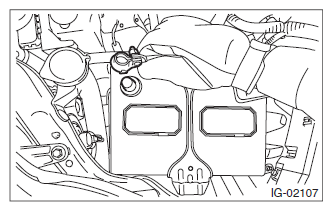

Fig 9: Connecting Ground Cable To Battery
Courtesy of SUBARU OF AMERICA, INC.
Fill engine coolant. Refer to , FILLING OF ENGINE COOLANT .
Adjust the CVTF level. (CVT model) Refer to CVTF .
