Oil Level Switch: Wiring Diagram

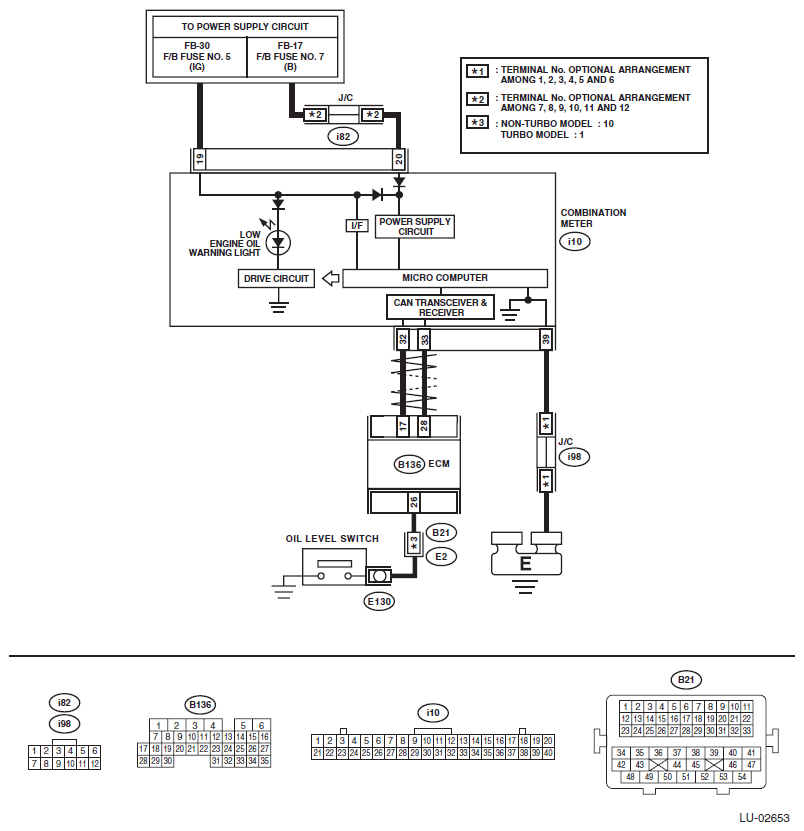

Fig 1: Identifying Oil Level Switch Wiring Diagram
G07910017Courtesy of SUBARU OF AMERICA, INC.
