Oil Level Switch: Wiring Diagram

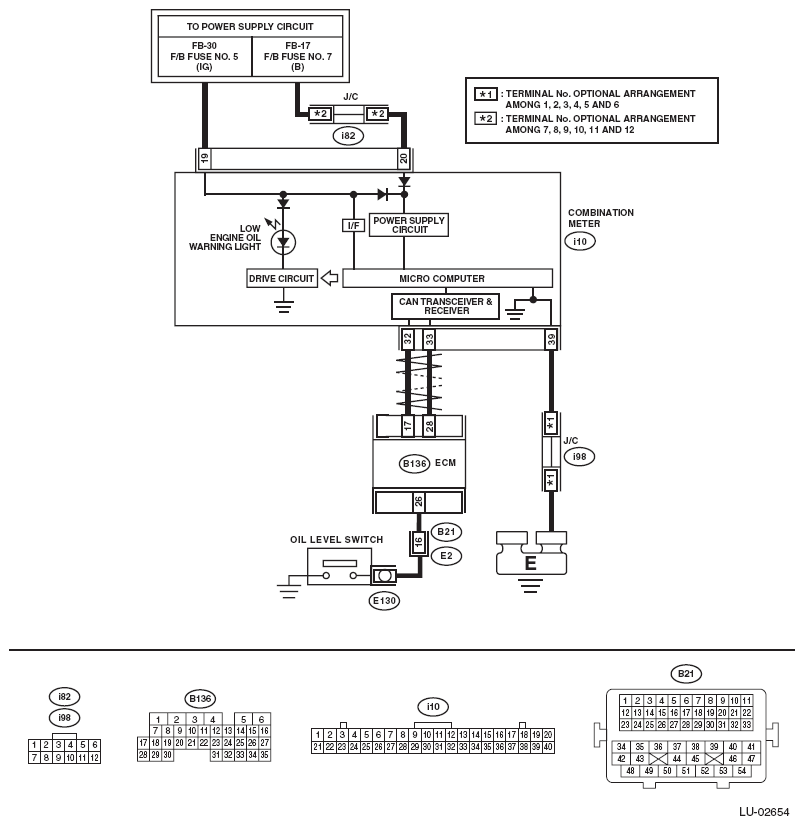

Fig 1: Oil Level Switch Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
