Air Cleaner Case: Installation

Install the bolt (A) and nut (B) which secure the air cleaner case (front) to the body.
Tightening torque:

Bolt (A)

6 N.m (0.6 kgf-m, 4.4 ft-lb)

Nut (B)

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

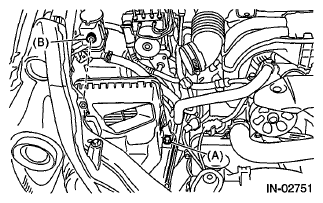

Fig 1: Identifying Air Cleaner Case (Front) Bolt And Nut
Courtesy of SUBARU OF AMERICA, INC.
Install the air cleaner case (rear) and the air cleaner element.
NOTE: When installing the air cleaner case (rear), align the protrusion of the air cleaner case (rear) to the hole on the air cleaner case (front) to install.

Fig 2: Installing Air Cleaner Case (Rear)
Courtesy of SUBARU OF AMERICA, INC.
Install the clip (B) to the air cleaner case (front), then tighten the clamp (A) that connects the air cleaner case (rear) to the intake boot.
Tightening torque:

Clamp (A)

3 N.m (0.3 kgf-m, 2.2 ft-lb)

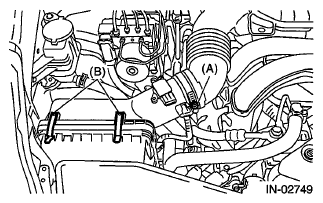

Fig 3: Identifying Clamp And Clip Of Air Cleaner Case
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector (A) to the mass air flow and intake air temperature sensor and secure the harness with clip (B).

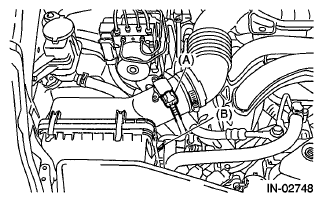

Fig 4: Identifying Mass Air Flow And Intake Air Temperature Sensor Connector With Clip
Courtesy of SUBARU OF AMERICA, INC.
Connect the power steering oil pressure hose (suction hose) to the clip on the side of air cleaner case (rear).

Fig 5: Identifying Power Steering Oil Pressure Hose (Suction Hose) And Clip
Courtesy of SUBARU OF AMERICA, INC.
Install the air intake duct. Refer to INSTALLATION .
Connect the ground cable to battery.

Fig 6: Connecting Ground Cable To Battery
