Components With Torque Specifications: V-Belt

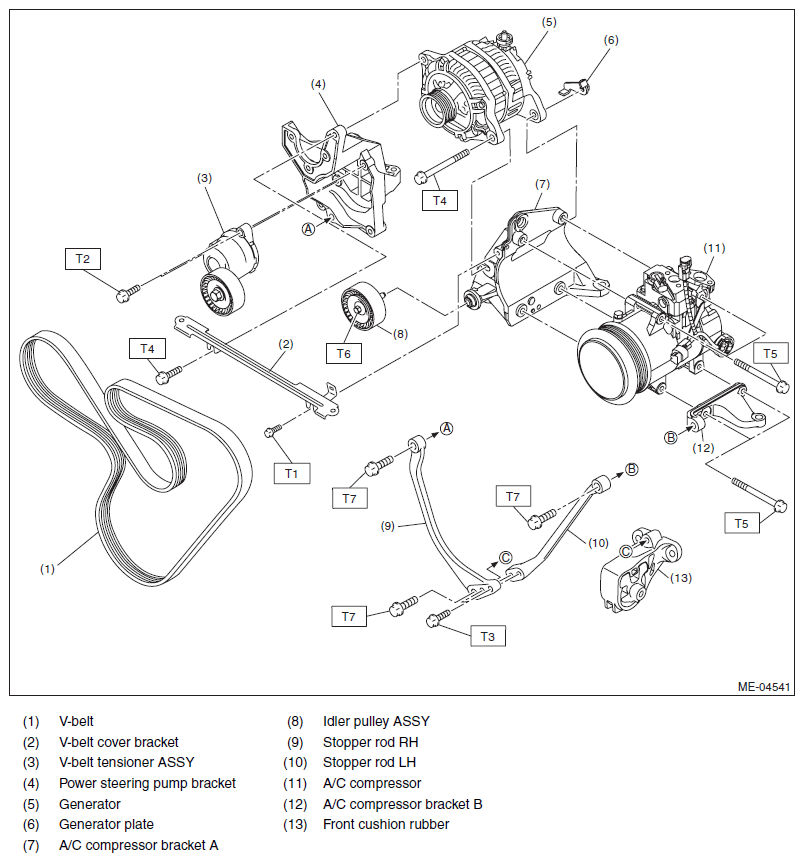

Fig 1: Exploded View Of V-Belt And Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 20 (2.0, 14.8)

T3: 22 (2.2, 16.2)

T4: 25 (2.5, 18.4)

T5: 26.5 (2.7, 19.5)

T6: 33 (3.4, 24.3)

T7: 36 (3.7, 26.6)
