Electronic Throttle Control Relay: Removal

1. Disconnect the ground cable from battery.

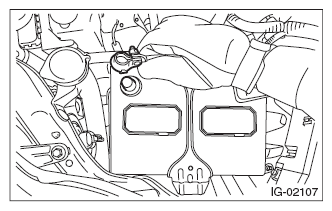

   Fig 1: Disconnecting Ground Cable From Battery

   Courtesy of SUBARU OF AMERICA, INC.
2. Remove the glove box lid assembly. Refer to GLOVE BOX .
3. Remove the electronic throttle control relay from the relay holder.

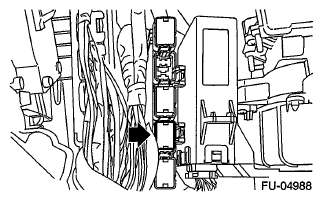

Fig 2: Locating Electronic Throttle Control Relay

Courtesy of SUBARU OF AMERICA, INC.
