General Description
›
Components With Torque Specifications
›
Fuel Pump
Fuel Pump

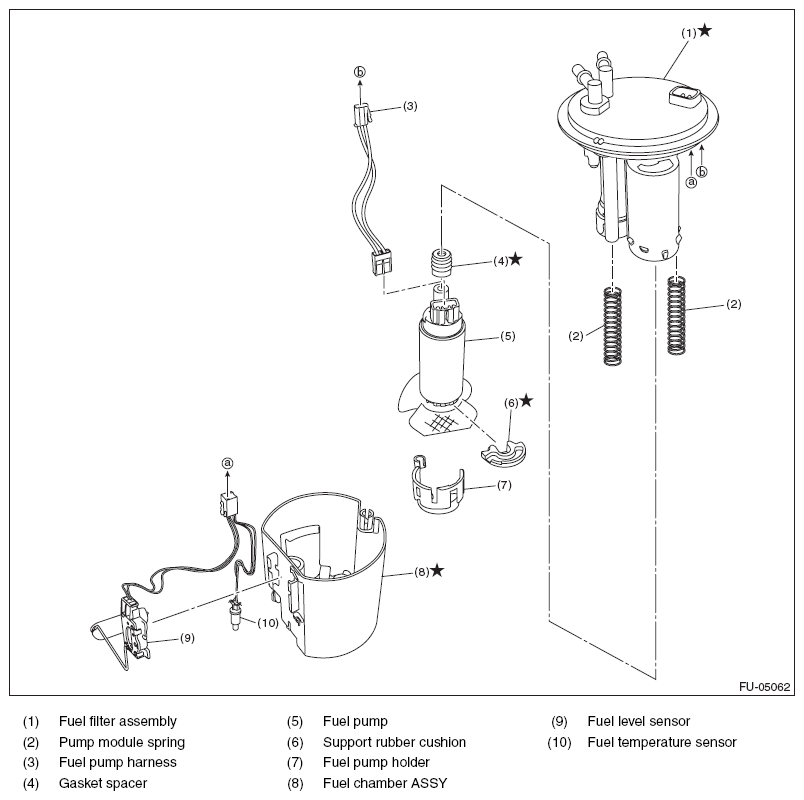

Fig 1: Fuel Pump Component Location With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
