Oil Temperature Sensor: Removal

1. Disconnect the ground cable from battery.

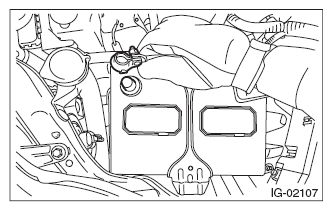

   Fig 1: Disconnecting Ground Cable From Battery

   Courtesy of SUBARU OF AMERICA, INC.
2. Remove the air intake boot assembly. Refer to AIR INTAKE BOOT .
3. Disconnect the connector from oil temperature sensor.
4. Remove the oil temperature sensor.

Fig 2: Locating Oil Temperature Sensor Connector

Courtesy of SUBARU OF AMERICA, INC.
