Diagnostic Trouble Code (DTC) Detecting Criteria (H4SO)
›
Diagnostic Trouble Code (DTC) Detecting Criteria
›
DTC P1443 Vent Control Solenoid Valve Function Problem
›
Component Description
Component Description

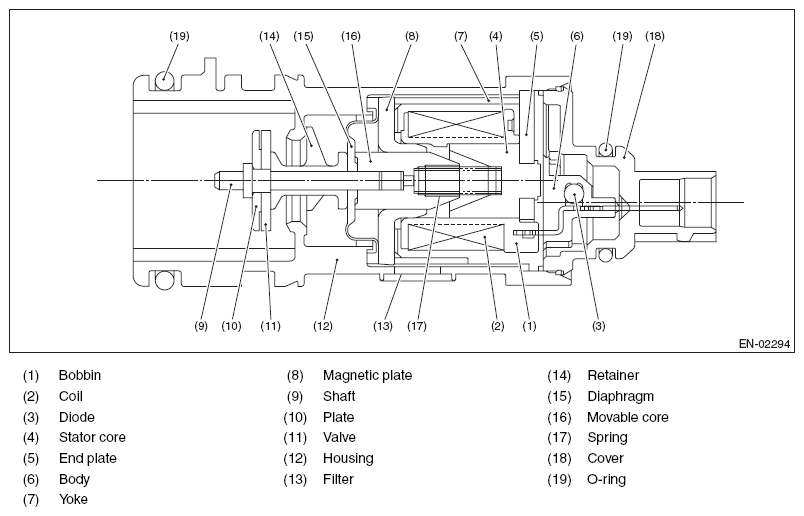

Fig 1: Identifying Vent Control Solenoid Valve Components Location
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
