Conditions For Abs Sequence Control

WARNING: This page is about a different car, the 2011 Subaru Tribeca. However, it is still accessible from the selected car via links, so may be relevant.

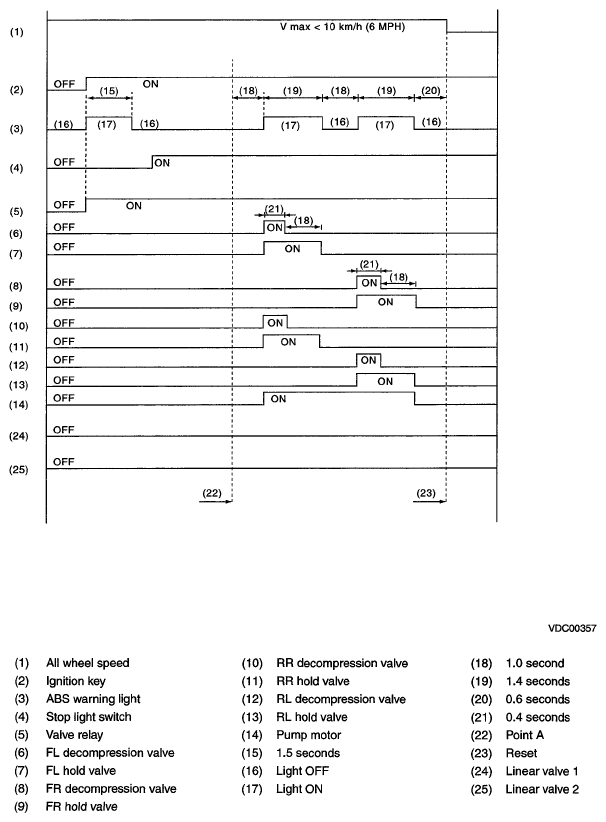

Fig 1: ABS Sequence Control Conditions

Courtesy of SUBARU OF AMERICA, INC.

NOTE: The control operation starts from point A.
