Second-Row Seats

WARNING: This page is about a different car, the 2011 Subaru Tribeca. However, it is still accessible from the selected car via links, so may be relevant.

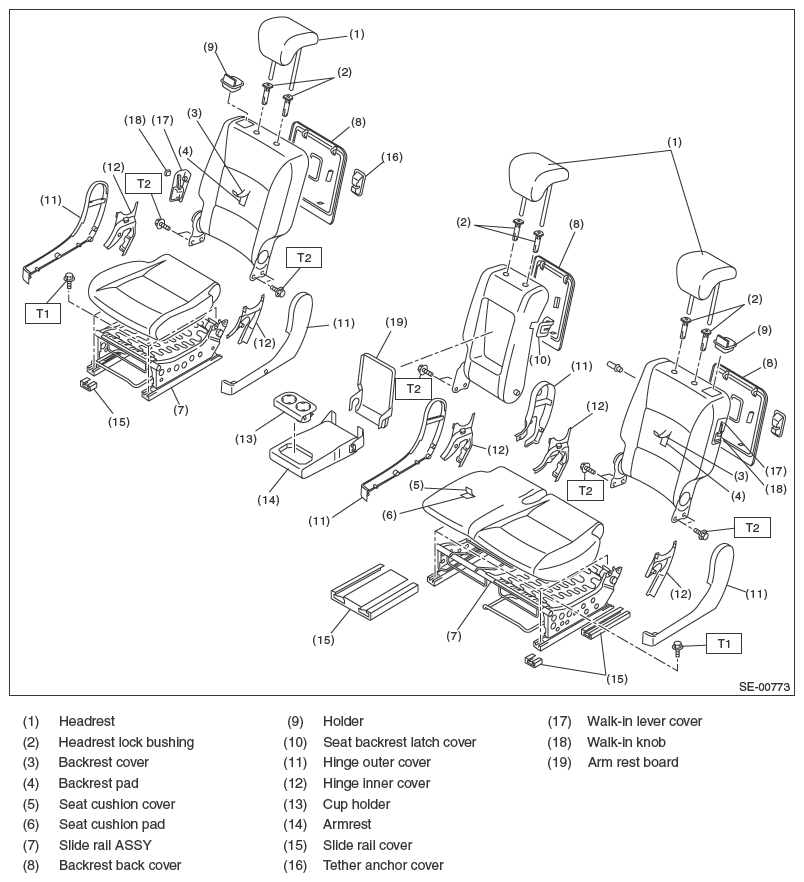

Fig 1: Exploded View Of Second-Row Seats

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 40 (4.08, 28.9)

T2: 52 (5.30, 37.6)
