Timing Chain Assembly: Location

WARNING: This page is about a different variant/trim than selected.

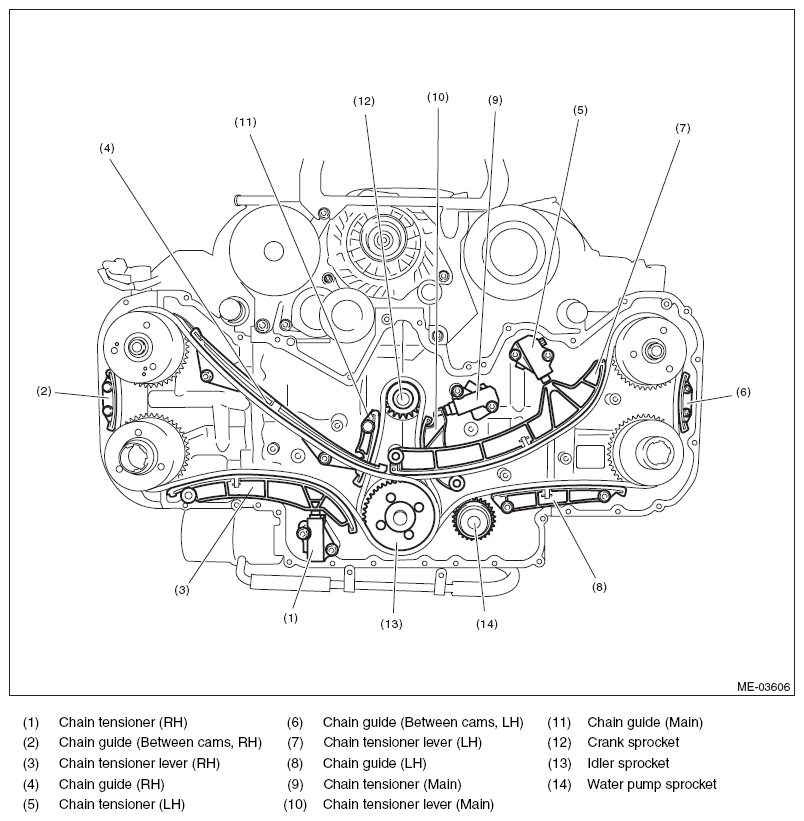

Fig 1: Identifying Timing Chain Assembly Components Location
G07912698Courtesy of SUBARU OF AMERICA, INC.
