Engine Oil

CAUTION: If engine oil is spilt onto the exhaust pipe, wipe it off with cloth to avoid emission of smoke or causing a fire.

Check the engine oil amount. If the amount of oil is insufficient, check that no leaks are found. Then, add the necessary amount of the specified engine oil.

2.5 L model

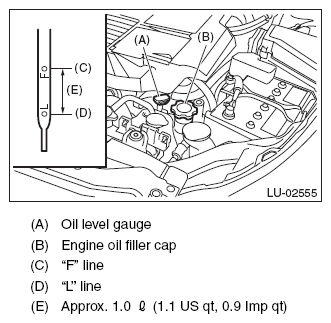

Fig 1: Checking Engine Oil Level Using Oil Level Gauge (2.5 L Model)
Courtesy of SUBARU OF AMERICA, INC.
3.6 L model

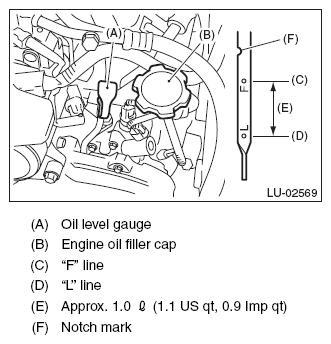

Fig 2: Checking Engine Oil Level Using Oil Level Gauge (3.6 L Model)
Courtesy of SUBARU OF AMERICA, INC.
