Rear Seat Belt (Outback Model)
Rear Seat Belt (Outback Model)

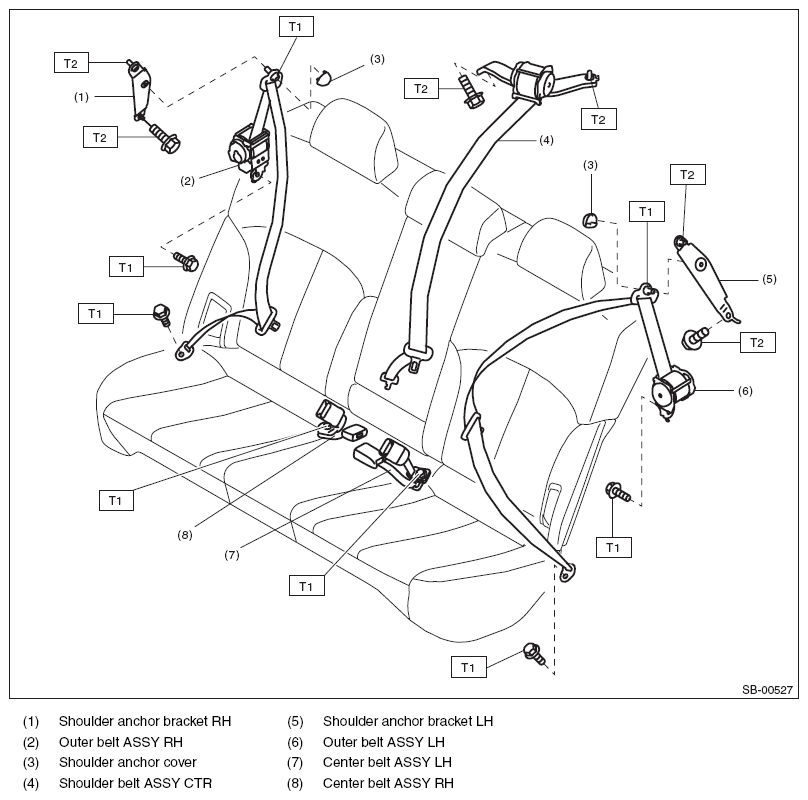

Fig 1: Rear Seat Belt Replacement Components With Torque Specifications (Outback Model)
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 30 (3.06, 22.1)
T2: 53 (5.4, 39.1)
