Oil Pump

H4 non-turbo model

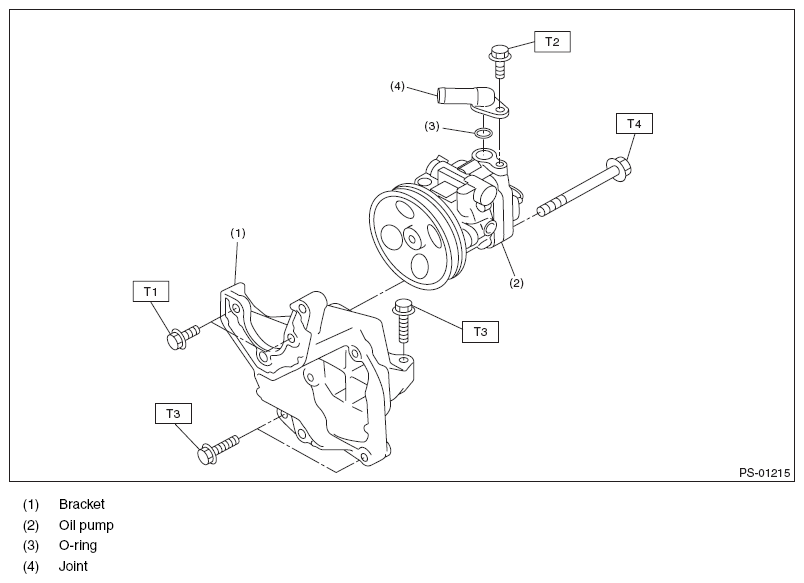

Fig 1: Exploded View Of Oil Pump (H4 Non-Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 10 (1.02, 7.4)

T2: 16 (1.63, 11.8)

T3: 22 (2.24, 16.2)

T4: 36 (3.67, 26.6)
H4 turbo model

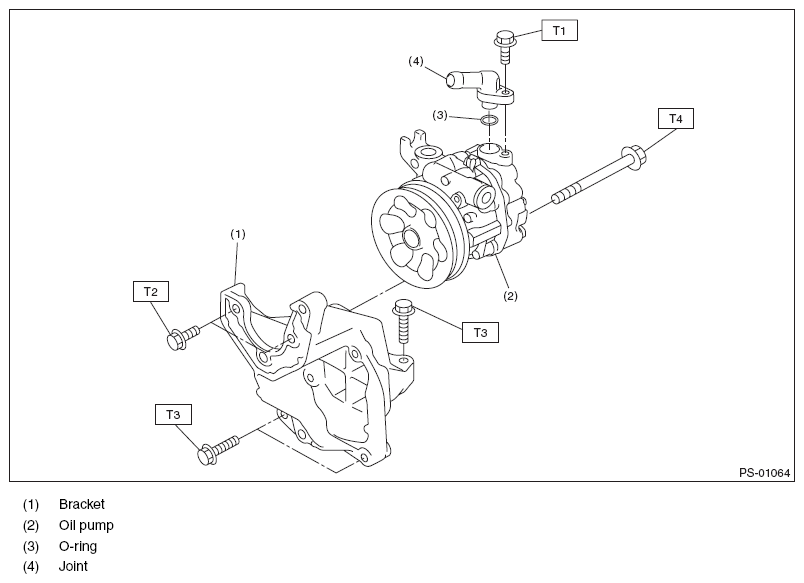

Fig 2: Exploded View Of Oil Pump (H4 Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 16 (1.63, 11.8)

T2: 21 (2.14, 15.5)

T3: 22 (2.24, 15.9)

T4: 36 (3.67, 26.6)
H6 model

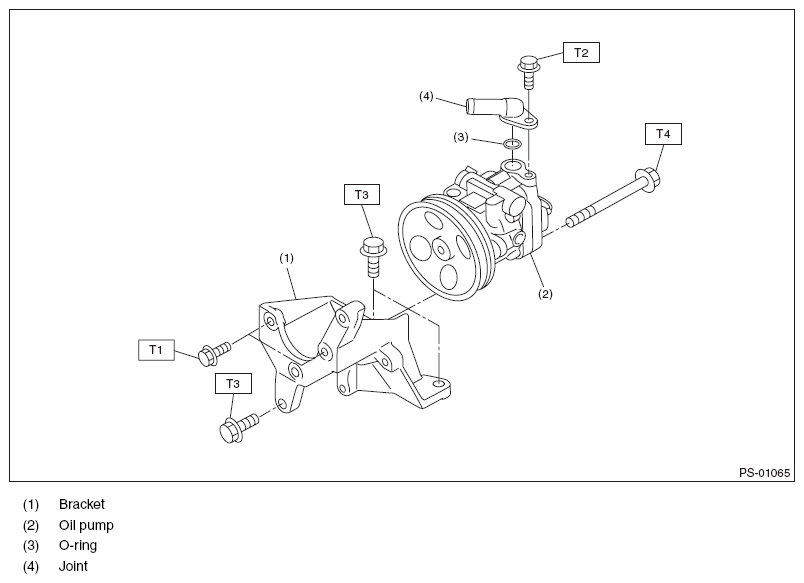

Fig 3: Exploded View Of Oil Pump (H6 Model)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 16 (1.63, 11.8)

T2: 21 (2.14, 15.5)

T3: 33 (3.36, 24.3)

T4: 36 (3.67, 26.6)
