Reservoir Tank: Removal

  1. Drain fluid from the reservoir tank.
  2. Disconnect the hose from reservoir tank.
    CAUTION: Plug the ends of the hose and pipe to prevent foreign matter from entering.
  3. Remove the reservoir tank from the body.

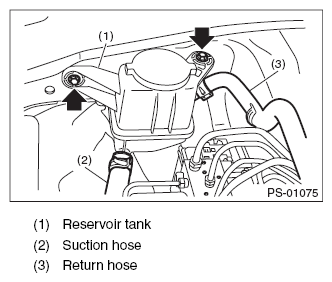

    Fig 1: Locating Reservoir Tank Bolts
    G07914385Courtesy of SUBARU OF AMERICA, INC.
