Rear Lateral Link: Removal

  1. Lift up the vehicle, and then remove the rear wheels.
  2. Remove the bolts and nuts and lower the rear lateral link.
    1. Remove the nut and disconnect the rear stabilizer link.
    2. Remove the shock absorber lower bolt.
    3. Disconnect the rear lateral link.

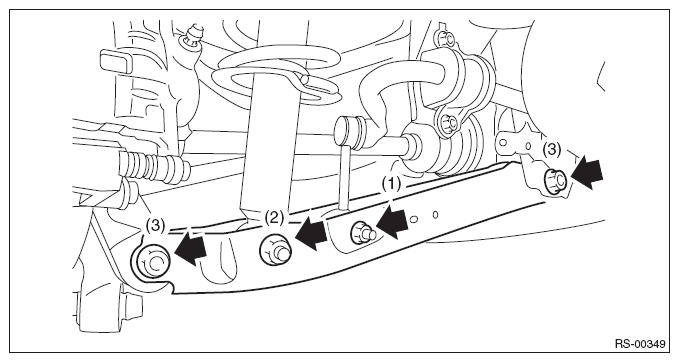

      Fig 1: Locating Lower Rear Lateral Link Bolts And Nuts
      G07914032Courtesy of SUBARU OF AMERICA, INC.
