Rear Stabilizer: Removal

  1. Lift up the vehicle, and then remove the rear wheels.
  2. Remove the rear stabilizer.
    1. Remove left and right stabilizer links.
    2. Detach the stabilizer clamp and remove the rear stabilizer.

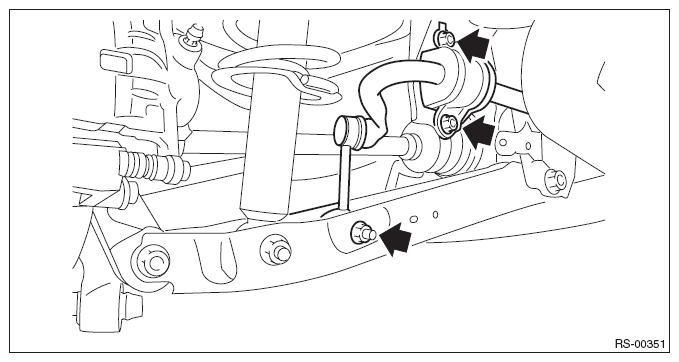

      Fig 1: Locating Rear Stabilizer Bolt And Nut
      G07914009Courtesy of SUBARU OF AMERICA, INC.
