Rear Trailing Link: Removal

  1. Lift up the vehicle, and then remove the rear wheels.
  2. Remove the trailing link.
    1. Remove the bracket, and remove the parking brake cable from the guide (a).
    2. Remove the bolts and nuts, and then remove the trailing link.

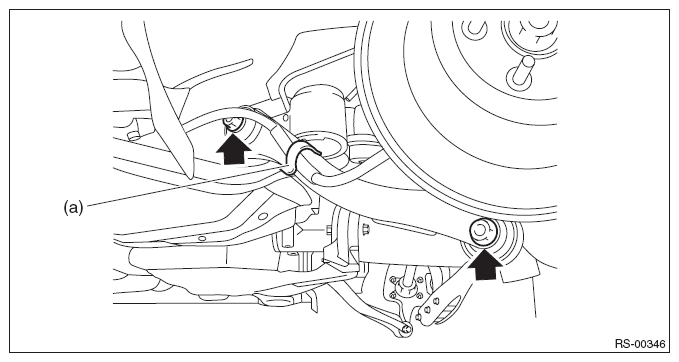

      Fig 1: Identifying Guide And Trailing Link Bolts With Nuts
      G07914012Courtesy of SUBARU OF AMERICA, INC.
