Clutch Pedal: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the collector cover. (turbo model)
  3. Remove the air intake boot assembly. (non-turbo model) Refer to AIR INTAKE BOOT .
  4. Remove the intercooler. (turbo model) Refer to INTERCOOLER .
  5. Drain the clutch fluid from the reservoir tank.
  6. Disconnect the clutch pipe from the connector.

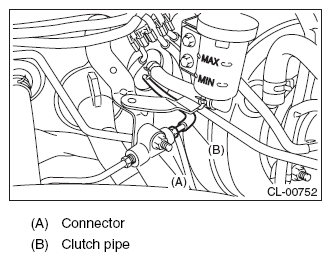

    Fig 1: Identifying Clutch Pedal And Connector
    G07913887Courtesy of SUBARU OF AMERICA, INC.
  7. Disconnect the reservoir tank hose from the reservoir tank.

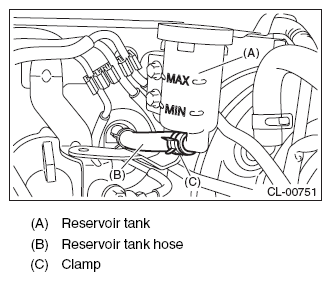

    Fig 2: Identifying Reservoir Tank, Reservoir Tank Hose And Clamp
    G07913888Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the instrument panel lower cover. Refer to INSTRUMENT PANEL LOWER COVER .
  9. Remove the body integrated unit. Refer to BODY INTEGRATED UNIT .
  10. Disconnect the connector from clutch switch.
  11. Disconnect the connector from the brake switch.
  12. Remove the snap pin and clevis pin connecting the operating rod and brake pedal.
  13. Remove the pedal assembly.
NOTE: Place vinyl, etc. in order not to drop the clutch fluid to the floor carpet.

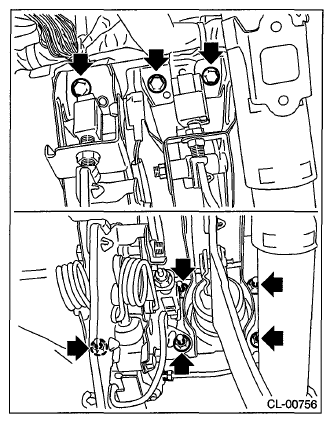

Fig 3: Locating Pedal Assembly Bolts
G06652555Courtesy of SUBARU OF AMERICA, INC.
