Transfer Case
- Install the shift link assembly to the transfer case. Refer to Shift Link Assembly .

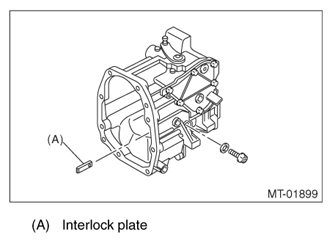

- Install the interlock plate to the transfer case.NOTE:
- Use a new bolt and gasket.
- Before installing the interlock plate, clean the screw threads.
Tightening torque:
20 N.m (2.0 kgf-m, 14.8 ft-lb)
