Accelerator Pedal: Removal

  1. Disconnect the ground cable from battery.

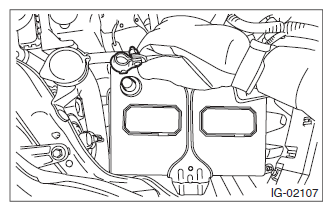

    Fig 1: Disconnecting Ground Cable From Battery
    G07910020Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the connector (A).
  3. Remove the nut (B) securing accelerator pedal assembly and remove the accelerator pedal assembly.

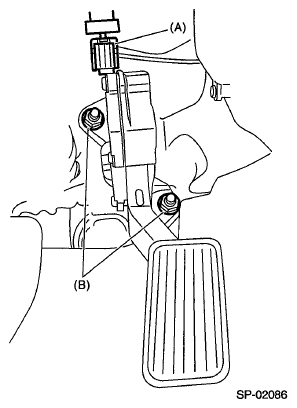

Fig 2: Identifying Connector And Accelerator Pedal Assembly Mounting Nut
G06648604Courtesy of SUBARU OF AMERICA, INC.
