Sedan Model

  1. Disconnect the ground cable from battery.
  2. Remove the rear shelf trim. Refer to REAR SHELF TRIM .
  3. Remove the keyless entry control module.
    1. Disconnect the connector.
    2. Remove the bolt and remove the keyless entry control module.

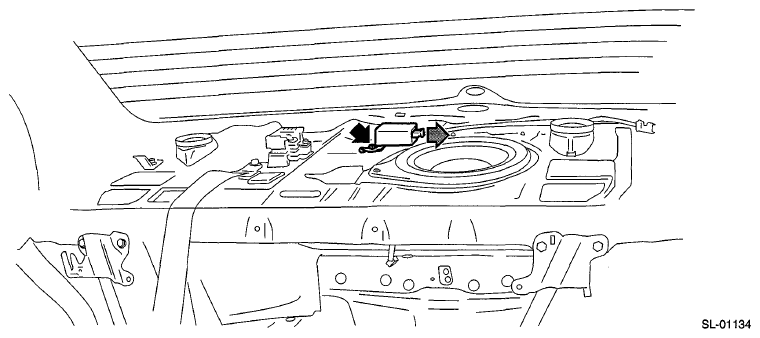

      Fig 1: Removing Keyless Entry Control Module (Sedan Model)
      G06653939Courtesy of SUBARU OF AMERICA, INC.
