Rear Gate Opener Button: Inspection

  1. Disconnect the rear gate opener button connector.
  2. Measure the resistance between rear gate opener button terminals.

    Preparation tool: Circuit tester

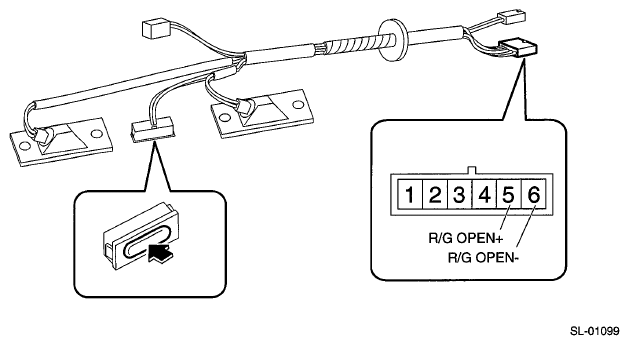

    Fig 1: Identifying Rear Gate Opener Button Connector Terminals
    G06653907Courtesy of SUBARU OF AMERICA, INC.
    Terminal No. Inspection conditions Specification
    5 - 6 Open Less than 1 Ω
    Close 1 MΩ or more
  3. Replace the rear gate opener button if the inspection result is not within the standard value.
