Under-Hood Fuse/Relay Box

Under-hood fuse/relay box is located in the engine compartment, see illustration below.

Fig 1: Locating Under-Hood Fuse/Relay Box

Courtesy of SUBARU OF AMERICA, INC.

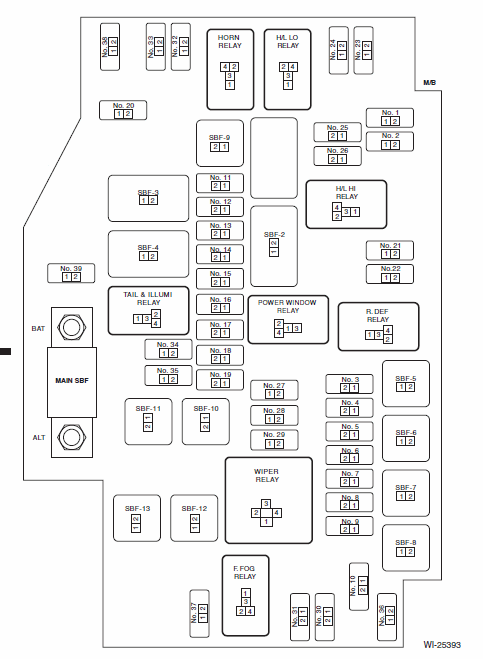

Fig 2: Identifying Under-Hood Fuse/Relay Box

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Identifying Under-Hood A/C Relay Box (2.5L)

Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Identifying Under-Hood A/C Relay Box (3.6L)

Courtesy of SUBARU OF AMERICA, INC.
