Steering Gearbox: Removal

  1. Remove the cradle. Refer to CRADLE REMOVAL .
  2. Remove the bolts, and remove left and right main mounting brackets.

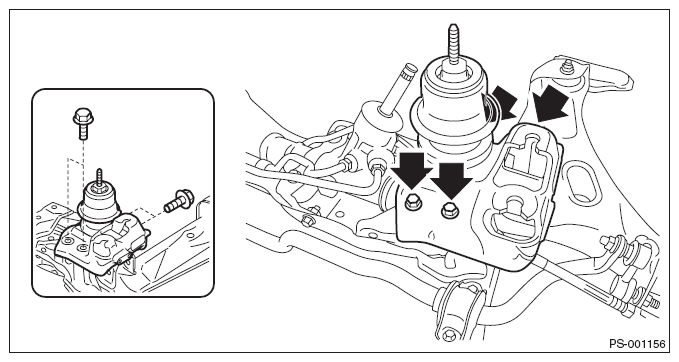

    Fig 1: Locating Left And Right Main Mounting Brackets Bolts
    G07914320Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the bolts and remove the steering gearbox.
    CAUTION: Be careful not to damage the steering boot.

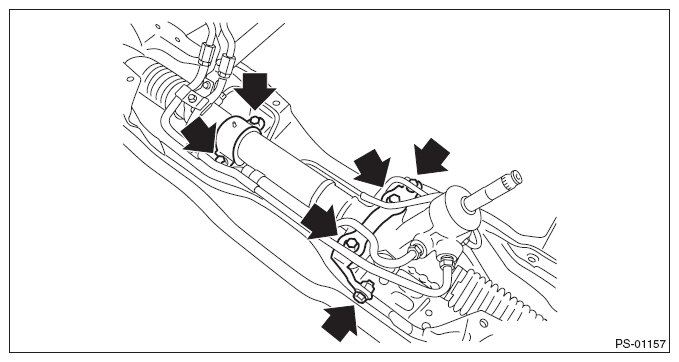

    Fig 2: Locating Steering Gearbox Bolts
    G07914321Courtesy of SUBARU OF AMERICA, INC.
