Automatic Transmission - Diagnostics: Electrical Component Location: Location: Sensor

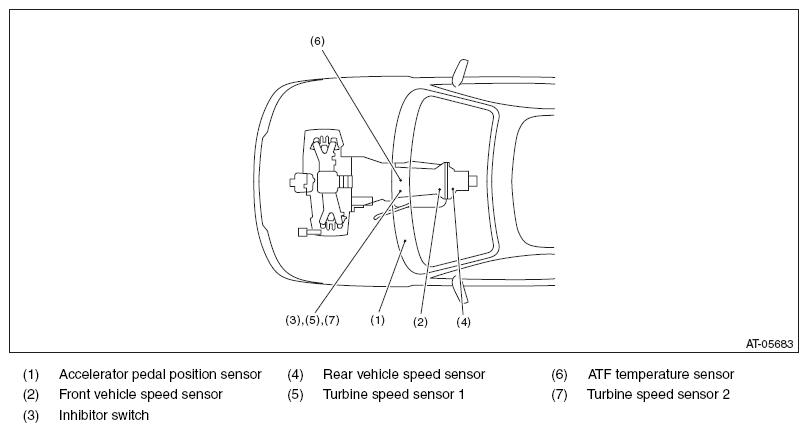

Fig 1: Identifying Sensors (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

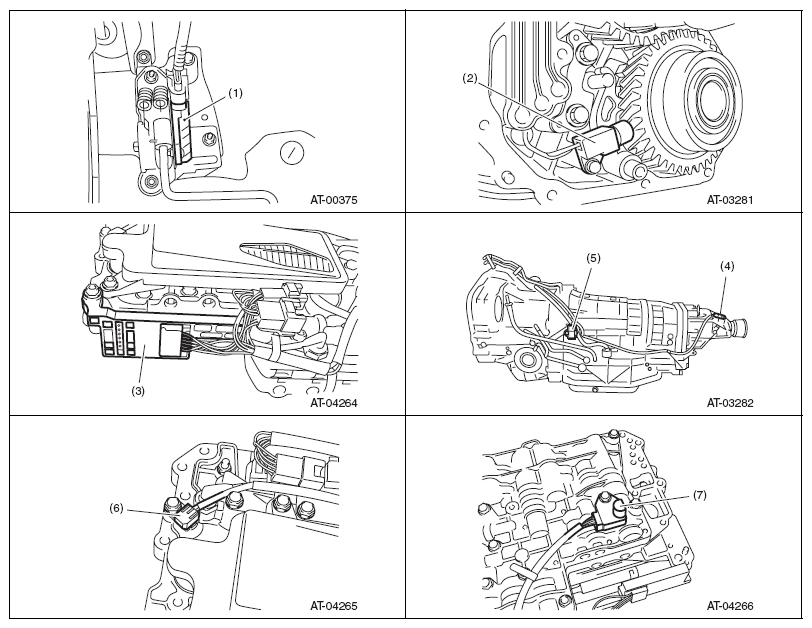

Fig 2: Identifying Sensors (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
