Basic Diagnostic Procedure: Procedure

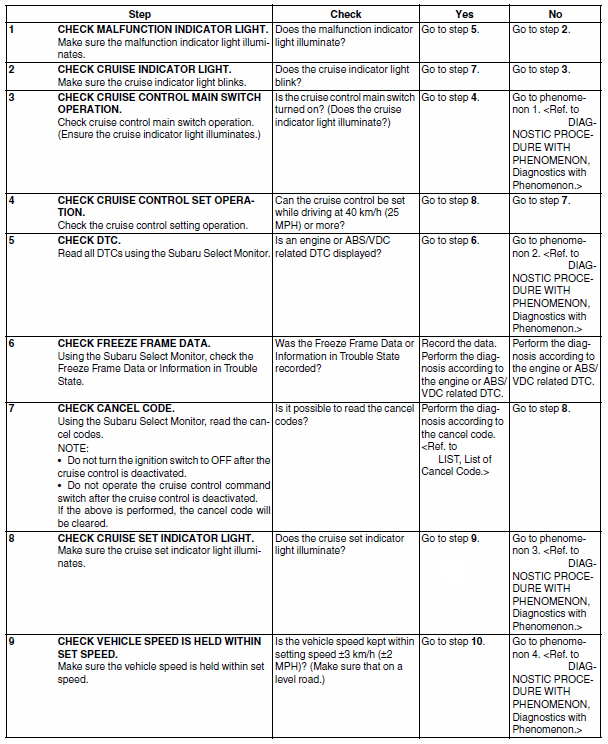

Fig 1: Cruise Control System Diagnostic Procedure Chart (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Cruise Control System Diagnostic Procedure Chart (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
