Remote Control Mirror Switch: Removal

  1. Remove the instrument panel lower cover. Refer to REMOVAL , Instrument Panel Lower Cover.
  2. Disconnect the connector.
  3. Remove the remote control mirror switch from instrument panel lower cover.

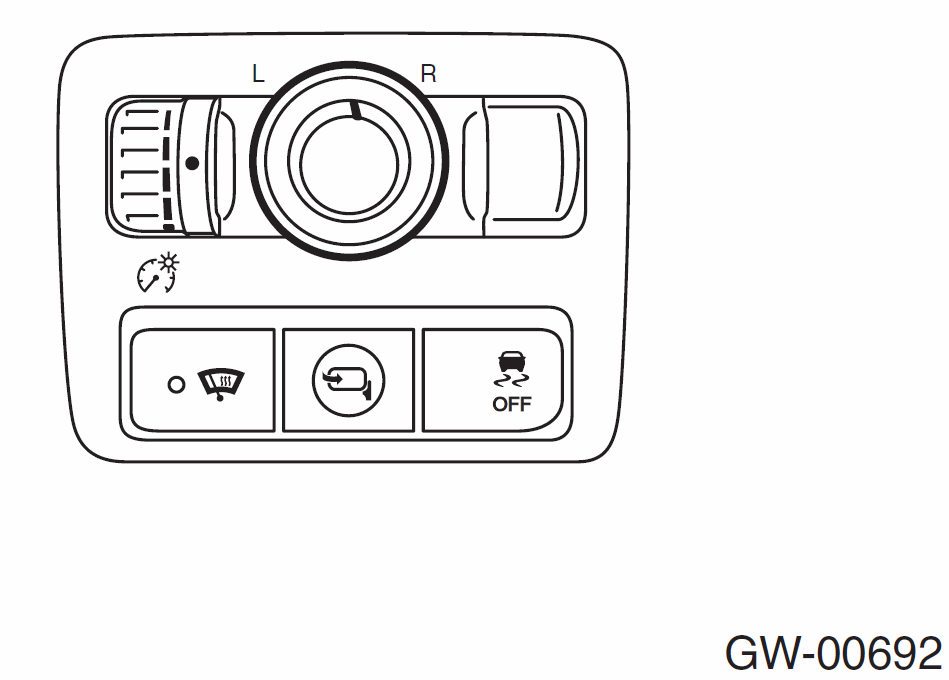

    Fig 1: Identifying Remote Control Mirror Switch
    G00510808Courtesy of SUBARU OF AMERICA, INC.
