AT Shift Lock Control System: Wiring Diagram

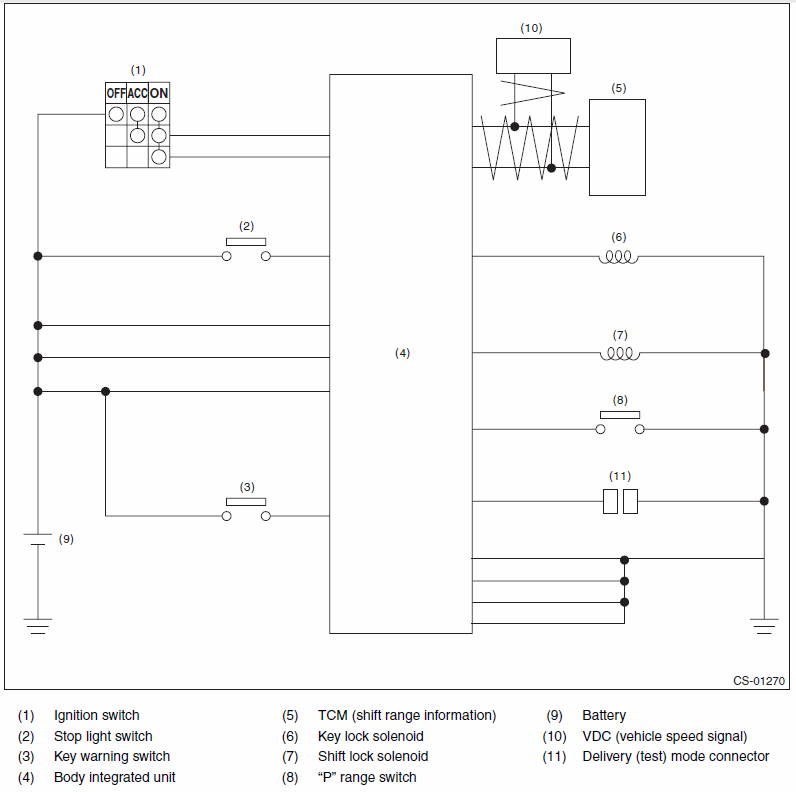

Fig 1: AT Shift Lock Control - Wiring Diagram
G00514618Courtesy of SUBARU OF AMERICA, INC.
