General Description
›
Components With Torque Specifications
›
Transmission Control Device & Parking Support
Transmission Control Device & Parking Support

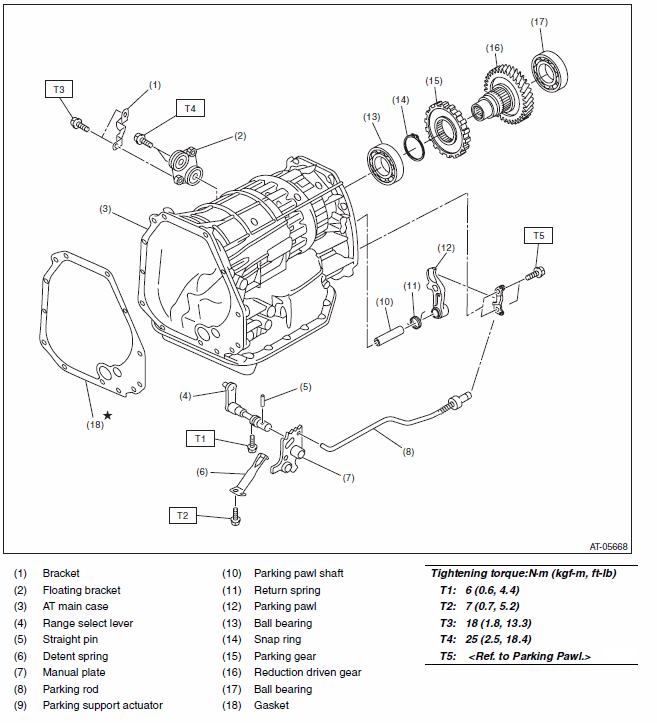

Fig 1: Exploded View Of Transmission Control Device And Parking Support With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
