Combination Meter: Removal

  1. Disconnect the ground cable from battery.
  2. Set the tilt steering at the lowest position.
  3. Remove the console box. Refer to REMOVAL , Console Box.
  4. Remove the control panel. Refer to REMOVAL , Control Panel.
  5. Remove the instrument panel lower cover. Refer to REMOVAL , Instrument Panel Lower Cover.
  6. Remove the console side panel. Refer to REMOVAL , Center Console.
  7. Remove the meter visor.
  8. Remove the screws of combination meter (two for upper side, two for lower side) and pull the combination meter.

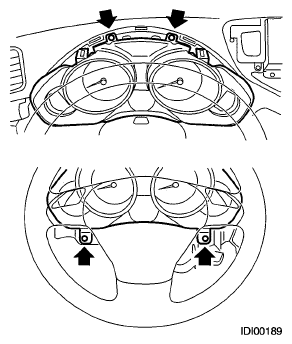

    Fig 1: Locating Combination Meter Screws (Upper Side And Lower Side)
    G05672094Courtesy of SUBARU OF AMERICA, INC.
  9. Disconnect the connector in the rear side of combination meter to remove meter.
    CAUTION:
    • Be careful not to damage the meter or instrument panel.
    • Pay particular attention to avoid damaging the meter glass.
