Chamber (FA20): Removal

Hose removal
1. Disconnect the hose.
2. Release the two clamps and remove the hose from the grommet.

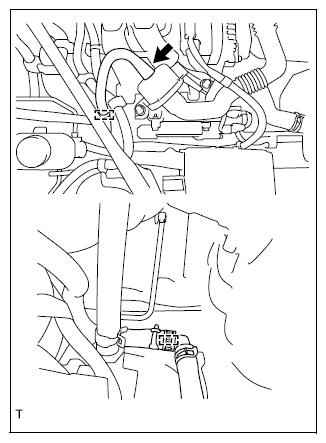

  Fig 1: Locating Hose And Clamps
  Courtesy of SUBARU OF AMERICA, INC.
Duct removal
1. Loosen the hose clamp.

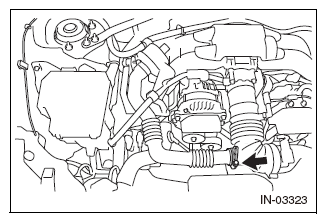

  Fig 2: Locating Hose Clamp
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove the two bolts and remove the duct and chamber assembly as a unit.

  Fig 3: Locating Chamber assembly Mounting Bolts
  Courtesy of SUBARU OF AMERICA, INC.
Chamber assembly removal
1. Loosen the hose clamp and remove the chamber assembly.

  Fig 4: Locating Hose Clamp
  Courtesy of SUBARU OF AMERICA, INC.
