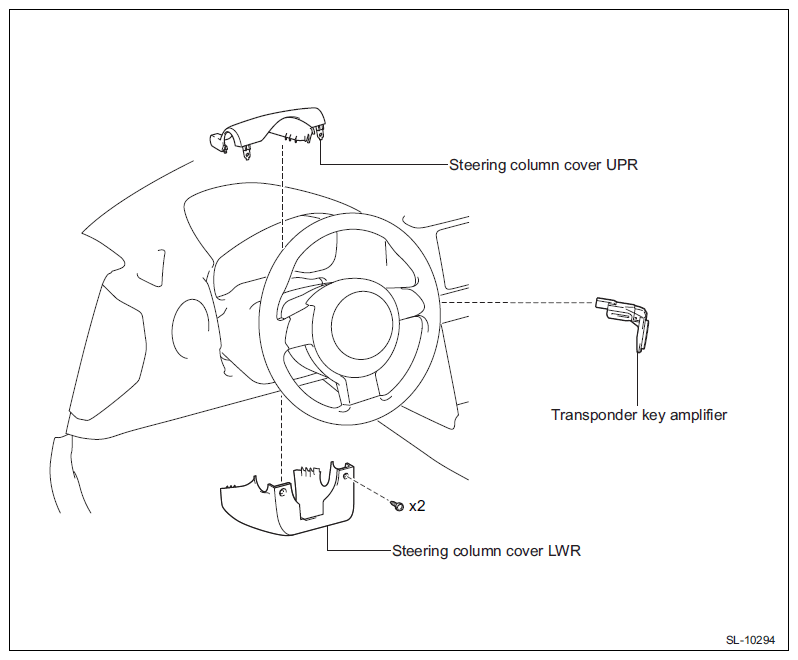

Exploded View
WARNING: This page is about a different car, the 2019 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of SUBARU OF AMERICA, INC.
|
Removal
- Removal of the steering column cover LWR (Refer to REMOVAL
)
- Removal of the steering column cover UPR (Refer to REMOVAL
)
- Removal of the transponder key amplifier
- Disconnect the connector.
- Release the two claws by using a fine flat tip screwdriver wrapped with protective tape, and remove the transponder key amplifier.
 Courtesy of SUBARU OF AMERICA, INC.
|
