Parking Brake Switch Assembly: Components

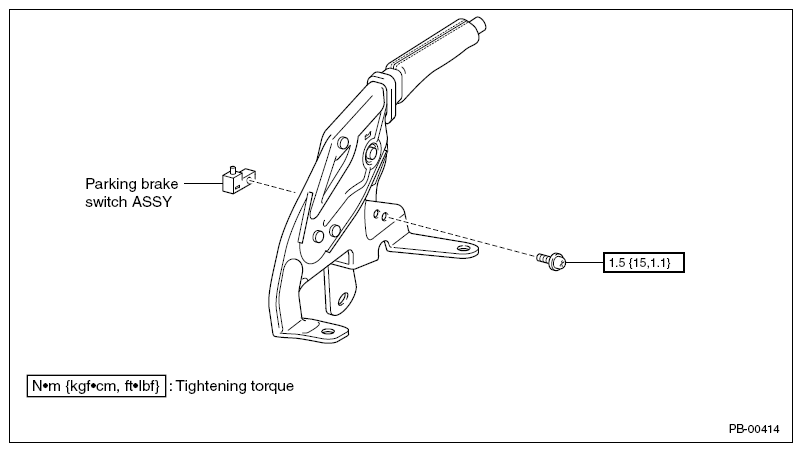

Fig 1: Parking Brake Switch Assembly Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
